var createScene = function () {
// This creates a basic Babylon Scene object (non-mesh)
var scene = new BABYLON.Scene(engine);
// This creates and positions a free camera (non-mesh)
const camera = new BABYLON.ArcRotateCamera("camera", Math.PI / 2, Math.PI / 4, 500, BABYLON.Vector3.Zero(), scene);
// This targets the camera to scene origin
camera.setTarget(BABYLON.Vector3.Zero());
camera.attachControl(canvas, true);
var light = new BABYLON.HemisphericLight("light", new BABYLON.Vector3(0, 1, 0), scene);
light.intensity = 0.7;
var skybox = BABYLON.Mesh.CreateBox("BackgroundSkybox", 5000, scene, undefined, BABYLON.Mesh.BACKSIDE);
var backgroundMaterial = new BABYLON.BackgroundMaterial("backgroundMaterial", scene);
backgroundMaterial.reflectionTexture = new BABYLON.CubeTexture("textures/TropicalSunnyDay", scene);
backgroundMaterial.reflectionTexture.coordinatesMode = BABYLON.Texture.SKYBOX_MODE;
skybox.material = backgroundMaterial;
const texture1 = new BABYLON.Texture("http://i.abc.com/image/JZBG4/材质 (10).png", scene);
const texture2 = new BABYLON.Texture("http://i.abc.com/image/0PEQC/材质 (11).png", scene);
const texture3 = new BABYLON.Texture("http://i.abc.com/image/DBU1M/TropicalSunnyDay_ny.jpg", scene);
//texture2.wrapU = BABYLON.Texture.WRAP_REPEAT; // 设置纹理在U方向重复
//texture2.wrapV = BABYLON.Texture.WRAP_REPEAT; // 设置纹理在V方向重复
const shaderMaterial = new BABYLON.ShaderMaterial("shader", scene, {
vertexSource: `
precision highp float;
// Attributes
attribute vec3 position;
attribute vec3 normal;
attribute vec2 uv;
varying vec2 vUv;
varying vec2 vUv1;
varying vec2 vUv2;
varying vec2 vUv3;
// Uniforms
uniform mat4 worldViewProjection;
// Varying
varying vec4 vPosition;
varying vec3 vNormal;
void main() {
vec4 p = vec4(position, 1.0);
vPosition = p;
vNormal = normal;
gl_Position = worldViewProjection * p;
vUv = uv; // 传递uv到Fragment Shader
vUv1 = uv * 3.0; // 缩放UV坐标，使纹理重复4次
vUv2 = uv * 1.0; // 缩放UV坐标，使纹理重复4次
vUv3 = uv * 1.0;
}
`,
fragmentSource: `
precision highp float;
varying vec4 vPosition;
varying vec3 vNormal;
varying vec2 vUv;
varying vec2 vUv1;
varying vec2 vUv2;
varying vec2 vUv3;
uniform sampler2D textureSampler1; // 纹理采样器
uniform sampler2D textureSampler2; // 纹理采样器
uniform sampler2D textureSampler3; // 纹理采样器
void main(void) {
//float edge = dot(normalize(vNormal), vec3(0.0, 0.0, 1.0));
float edgeThreshold = 0.01;
vec4 textureColor1 = vec4(0.0, 0.0, 0.0, 0.0);
vec4 textureColor2 = vec4(0.0, 0.0, 0.0, 0.0);
vec4 textureColor3 = vec4(0.0, 0.0, 0.0, 0.0);
textureColor1 = texture2D(textureSampler1, vUv1);
textureColor2 = texture2D(textureSampler2, vUv2);
textureColor3 = texture2D(textureSampler3, vUv3);
// 定义黑色的阈值
float blackThreshold = 0.05;
float blackThreshold2 = 0.2;
// 判断颜色是否接近黑色
if (textureColor1.r > blackThreshold &&
textureColor1.g > blackThreshold &&
textureColor1.b > blackThreshold) {
gl_FragColor = vec4(0.0, 0.0, 0.0, 0.7);
} else if (textureColor2.r > blackThreshold2 &&
textureColor2.g > blackThreshold2 &&
textureColor2.b > blackThreshold2) {
gl_FragColor = vec4(textureColor2.rgb, 0.7);
}else{
gl_FragColor =vec4(textureColor3.rgb, 0.6);
}
}
`,
}, {
attributes: ["position", "normal", "uv"],
uniforms: ["worldViewProjection"],
needAlphaBlending: true
});
shaderMaterial.setTexture("textureSampler1", texture1);
shaderMaterial.setTexture("textureSampler2", texture2);
shaderMaterial.setTexture("textureSampler3", texture3);
const numBuildings = 30;
const baseWidth = 40; // 基础宽度
const maxHeight = 100;
const buildings = [];
for (let i = 0; i < numBuildings; i++) {
const width = baseWidth + Math.random() * 10;
const height = maxHeight * Math.random() + 10;
const depth = 40; // 固定深度
// 创建立方体
const box = BABYLON.MeshBuilder.CreateBox(`building_${i}`, { width, height, depth }, scene);
// 随机位置
box.position.x = (Math.random() - 0.5) * 500;
box.position.z = (Math.random() - 0.5) * 500;
box.position.y = height / 2;
box.material = shaderMaterial;
buildings.push(box);
}
// Our built-in 'ground' shape.
var mirror = BABYLON.MeshBuilder.CreateGround("ground", { width: 1000, height: 1000 }, scene);
// 创建深蓝色材质
// const groundMaterial = new BABYLON.StandardMaterial("groundMaterial", scene);
// groundMaterial.diffuseColor = new BABYLON.Color3(0, 0, 0.5); // 深蓝色 (R=0, G=0, B=0.5)
//const mirrorTexture = new BABYLON.MirrorTexture("mirror", 512, scene, true);
//mirrorTexture.mirrorPlane = new BABYLON.Plane(0, -1, 0, 0); // 设置反射平面
//mirrorTexture.renderList.push(buildings[0]); // 添加需要反射的物体
// 将反射纹理应用到地面材质
// const groundMaterial = new BABYLON.StandardMaterial("groundMaterial", scene);
// groundMaterial.reflectionTexture = mirrorTexture;
// ground.material = groundMaterial;
// 将材质应用到地面
// ground.material = groundMaterial;
//var mirror = BABYLON.Mesh.CreateBox("Mirror", 1.0, scene);
//mirror.scaling = new BABYLON.Vector3(100.0, 0.01, 100.0);
mirror.material = new BABYLON.StandardMaterial("mirror", scene);
mirror.material.diffuseColor = new BABYLON.Color3(0.01, 0.1, 0.3);
mirror.material.reflectionTexture = new BABYLON.MirrorTexture("mirror", {ratio: 0.5}, scene, true);
mirror.material.reflectionTexture.mirrorPlane = new BABYLON.Plane(0, -1.0, 0, -2.0);
mirror.material.reflectionTexture.renderList = buildings;
mirror.material.reflectionTexture.level = 1.0;
mirror.material.reflectionTexture.adaptiveBlurKernel = 32;
mirror.position = new BABYLON.Vector3(0, 0, 0);
return scene;

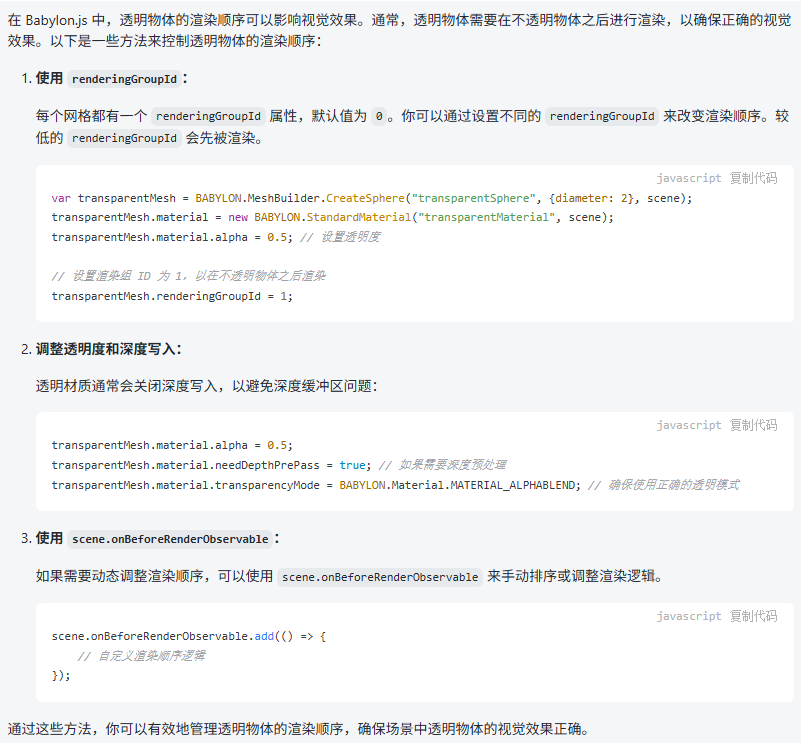

};在 Babylon.js 中，renderingGroupId 的范围通常是从 0 到 255。这允许你对场景中的物体进行分组，以控制它们的渲染顺序。较低的 renderingGroupId 会先被渲染。你可以根据需要在这个范围内设置不同的值，以实现复杂的渲染顺序控制。
